Description
Product Details

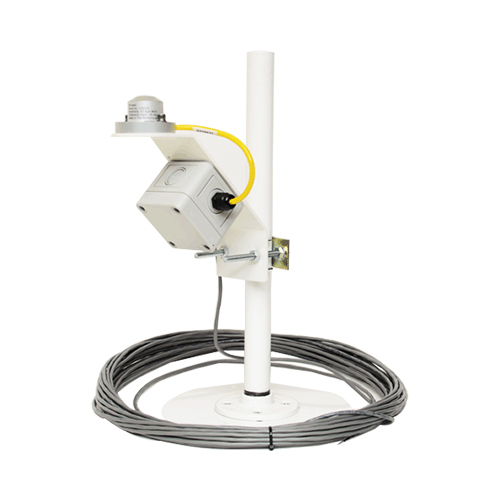

The sensor consists of a photodiode, housing, mounting bracket with cable junction box attached, and cable. A resistance shunts the photodiode, generating a voltage output. The photodiode and the material on top of it determine most electrical specifications. It is encapsulated in the housing in such a way that it has a field of view of 180 degrees and that its angular characteristics fulfill the “Cosine Response”. The nominal output resistance of the pyranometer is 50 Watts. This implies that the input impedance of the readout equipment should be at least 5000 Ohms in order to make an error of less than 0.1%. Cable can be extended without problems to a length of 328 ft. (100 meters), provided that cable resistance is less than 0.1% of the input impedance of the readout equipment.
The electrical sensitivity of the photodiode changes with the temperature. A nominal value for this is 0.2% change per degree Celsius. Calibration is performed at 20°C (68°F).
Features
- SP-Lite is an all-weather instrument
- Designed for continuous outdoor use
- Complies with “Consine Response”
- Full 180-degree field of view for complete hemispheric measurement
- Contained in lightweight and rugged white powder coat finished aluminum mounting bracket
