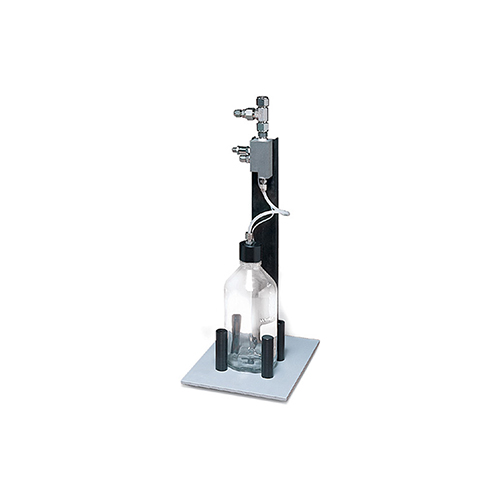

TSI 3076 Aerosol Generator



A stable and simple way to create polydisperse aerosols, the Constant Output Atomizer Model 3076 is a reliable aerosol generator that is suitable for numerous applications. Model 3076 can generate aerosols from solutions prepared in water or in alcohols; solvents are typically removed from the sample stream by a Model 3062 desiccant drier.

SKU: TSI3076 Tags: , , ,

Add to quote

Description

Product Details

Aerosol Generator Model 3076 is a Collision-type atomizer that generates aerosols of constant particle size in concentrations over 107 particles/cm3 . Its nominal aerosol flow rate is 3.0 L/min. Stainless-steel components make it suitable for the specialized applications listed below, in additon to basic aerosol research.

Features

  • Concentrations over 107 particles/cm3
  • Nominal aerosol flow rate of 3.0 L/min
  • Example aerosols:
    • Up to 2 µm PSL
    • Salt aerosol with mode in the range of 20 to 100 nm
    • Oil aerosol

Applications

  • Filter testing
  • Instrument calibration
  • Material synthesis
  • Biological and medical research
  • Research requiring polydisperse, high-concentration aerosol
