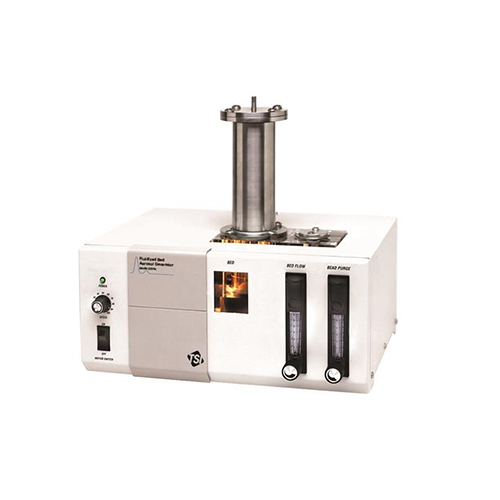

TSI 3400A Fluidized Bed Aerosol Generator (discontinued)



This product was discontinued in June 2024.
Recommended replacement: TSI 3410 Dust Aerosol Generator.



Useful for a variety of applications, the Fluidized Bed Aerosol Generator Model 3400A aerosolizes dry powders and dusts. Using bronze beads to break up powder agglomerates, the 3400A generates a constant output in terms of aerosol concentration and size distribution. It is used in various applications such as filter testing, inhalation toxicology testing, and providing seed particles for laser-velocimetry.

SKU: TSI3400A Tags: , , , , ,

Description

Product Details

The Fluidized Bed Aerosol Generator* Model 3400A is a general-purpose powder disperser. As air forces its way up through the horizontal screen and around the bronze beads and dust particles it creates a boiling action that de-agglomerates the powder. Model 3400A disperses powders over a size range from 0.5 to 40 µm, in concentrations from 10 to 100 mg/m3. A key feature of this aerosol generator is its stable output and concentration.

Features

  • Particle size range from 0.5 to 40 µm
  • Bed of bronze beads breaks up powder agglomerates
  • Stable output and concentration

Applications

  • Inhalation toxicology
  • Filter testing
  • Particle seeding
  • Powder dispersion

Accessories

TSI 3074B Filtered Air Supply
