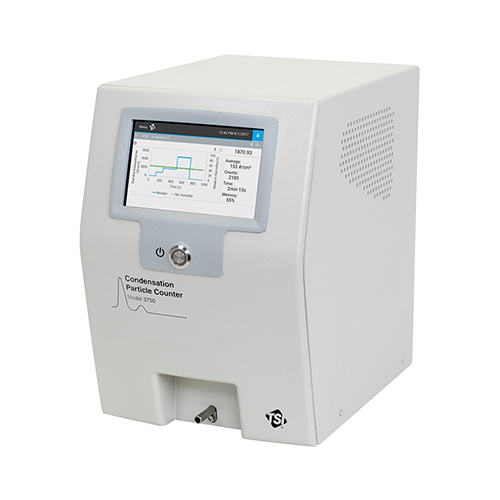

TSI 3750-CEN Condensation Particle Counter



As a first step in harmonizing the measurement of ultrafine particles (UFPs) in the atmosphere, the European Committee for Standardization (CEN) created the Technical Specification CEN/TS 16976. This standard defines a set of requirements for the Condensation Particle Counter (CPC) and the sampling system.

The CPC Model 3750-CEN is fully compliant with the CEN/TS 16976 technical specifications.

SKU: TSI3750-CEN Tags: , ,

Description

Product Details

The new model builds on a multi-generation lineage of TSI full-flow CPCs, which have served as the gold standard in nanoparticle counting for several decades. The new updates extend the concentration range, provide easier use for everyone with an intuitive direct-touch user interface, new software, and secure internal data storage for months of data.

The CPC model 3750-CEN fits seamlessly into the family of four Butanol-based CPCs, which includes the High Concentration, the Ultrafine Particle, and the 1-nm models. In addition, the 3750-CEN is now fully integrated into the Scanning Mobility Particle Sizer (SMPS) family. The SMPS model 3938W50-CEN enables ambient air monitoring stations to measure size distributions of ultrafine particles in compliance with CEN/TS 17434:2020.

Features

  • Air quality monitoring
  • Health effect studies
  • Basic aerosol research

Applications

  • Compliant with CEN/TS 16976:2016
  • Extended concentration range up to 100,000 particles/cm³
  • Data rate up to 50 Hz – capture highly dynamic processes
  • Reliable internal memory – store weeks of data for continuous monitoring
  • Water removal system – compatible with high-humidity environments
  • Diagnostics with Pulse Height Monitoring
  • Fast response to rapid changes in aerosol concentration (T10-90 < 1 sec)

Accessories

TSI RHT3000 Aerosol Humidity and Temperature Sensor

TSI 4148 Flow Calibrator

TSI 3750200 Sampling System for Atmospheric Particles

TSI 3032 Vacuum Pump
