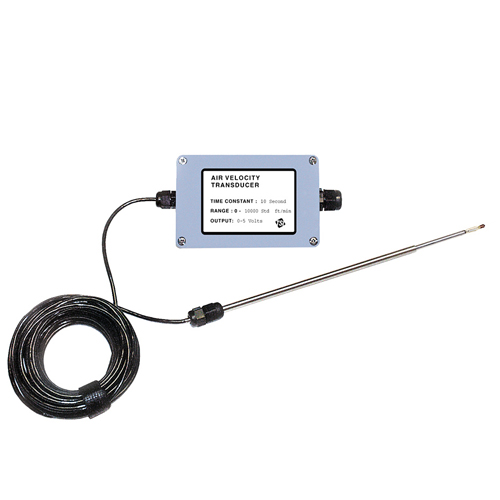

TSI 8475 Series Air Velocity Transducer



The Air Velocity Transducer 8475 (omnidirectional) is ideal for both temporary and permanent installations for air velocity measurements in research and development labs, manufacturing processes, and other applications.



This model contains on-board electronics and calibration curves that provide a linear signal output. This linear signal is sent out as either a current (mA) or a voltage (V) signal, allowing output to a variety of data loggers or data acquisition systems. Best of all, the current and voltage output ranges are easily changed by the user in under five minutes.



SKU: TSI8475 Tag:

Add to Quote

Description

Features

  • Omnidirectional probe tip
  • Available with choice of 3, 6, 9 or 12 inch probes
  • Accurate at low velocities from 10 to 100 ft/min (0.05 to 0.5 m/s)
  • Ideal for unknown or varying flow direction

Applications

  • Comfort and draft studies
  • Critical environment installations (e.g., clean rooms and hospitals)
  • Diffuser design analysis
  • Monitoring drying processes
  • Monitoring air flows in tunnels and subways
  • As a standard in wind tunnels and calibration facilities
  • Environmental monitoring in greenhouses and IAQ applications
  • General engineering applications
