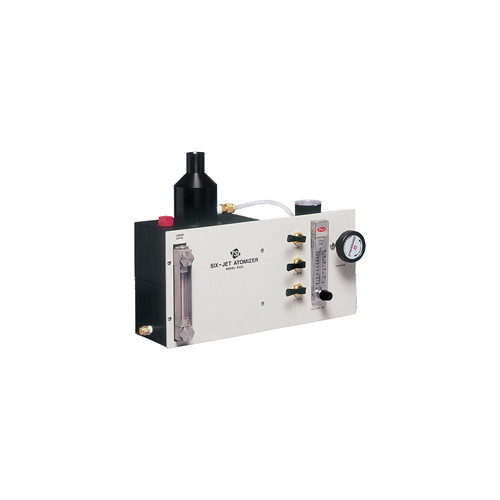

TSI 9306 Six-Jet Atomizer

The Six-Jet Atomizer 9306 is used to generate a polydisperse aerosol in high concentrations for use as seed particles for PIV and LDV measurements. The system has a built-in pressure regulator and pressure gauge, as well as a self-contained dilution system. External controls allow one through six particle-generating atomizer jets to be selected, each producing particle concentrations greater than 10⁷ particles/cm³ at 6.5 L/min (nominal at 25 psig pressure), allowing both the particle number concentration and the total particle output to be adjusted.

Description

Product Details

The system can be used to generate particles from virtually any liquid, and can even produce solid particles from solutions or suspensions. Precise control of dilution air flow rate allows further control over the output concentration and helps dry the solid particles generated from a solution.

Features

Up to six jets, each producing concentrations greater than 10⁷ particles/cm³
6.5 L/min nominal
Generation of polydisperse aerosols in high concentrations
External control for selecting up to six atomizer jets
External control of dilution air flow rate to adjust output concentrations and dry solid particles
Generates and expels particles into pressurized environments

Applications

Particle image velocimetry experiments
Laser Doppler velocimetry experiments
Research requiring polydisperse, high-concentration aerosol
